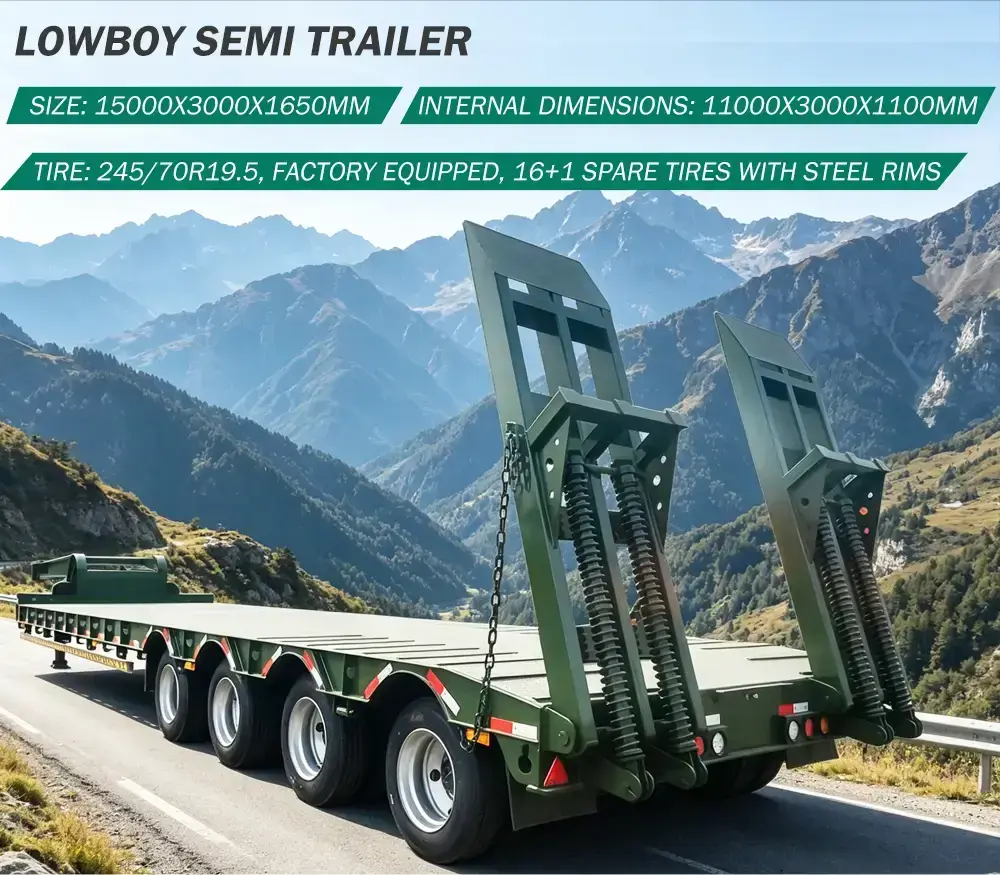

This is a 4-axle 80-ton low flatbed semi-trailer designed specifically for heavy equipment transportation. With its ultra-high strength reinforced chassis and ultra-low center of gravity cargo platform, it provides an extremely stable and high-load-bearing logistics solution for large excavators and various heavy industrial machinery.
| Parameter | Specification |
|---|
| Model | 4 Axle 80-ton Low Flatbed Semi Trailer |
| Rated Capacity | 80,000 kg (80 Ton) |
| Main Beam | 550mm Height, Upper 20mm, Lower 20mm, Middle 12mm |
| Axles | 4 units * 13T/16T (FUWA/BPW/Chengda Brand) |
| Tire Type | 11.00R20 or 12R22.5 (16 Units) |
| Suspension | Heavy duty mechanical leaf spring suspension |
| Brake System | WABCO Dual-line braking system |
Ready to enhance your transport efficiency?
Get a Free Quote Now
Core Advantages
Ultra-Low Cargo Platform: The lowered deck height reduces the overall center of gravity, making it easier to pass under bridges and enhancing transport safety.
High-Tensile Steel Construction: Built with Q345B high-strength steel, the main beam is designed to resist bending and deformation during heavy equipment loading.
Reinforced Mechanical Ramps: Equipped with heavy-duty spring-loaded or hydraulic ramps that can easily support the weight of large tracked vehicles.
Enhanced 4-Axle Load Distribution: The four-axle design optimizes weight distribution across the trailer, reducing road wear and meeting strict heavy-haul regulations.
Premium Brand Components: Utilizes world-class BPW/FUWA axles and JOST landing gear for long-term durability and reduced maintenance costs.

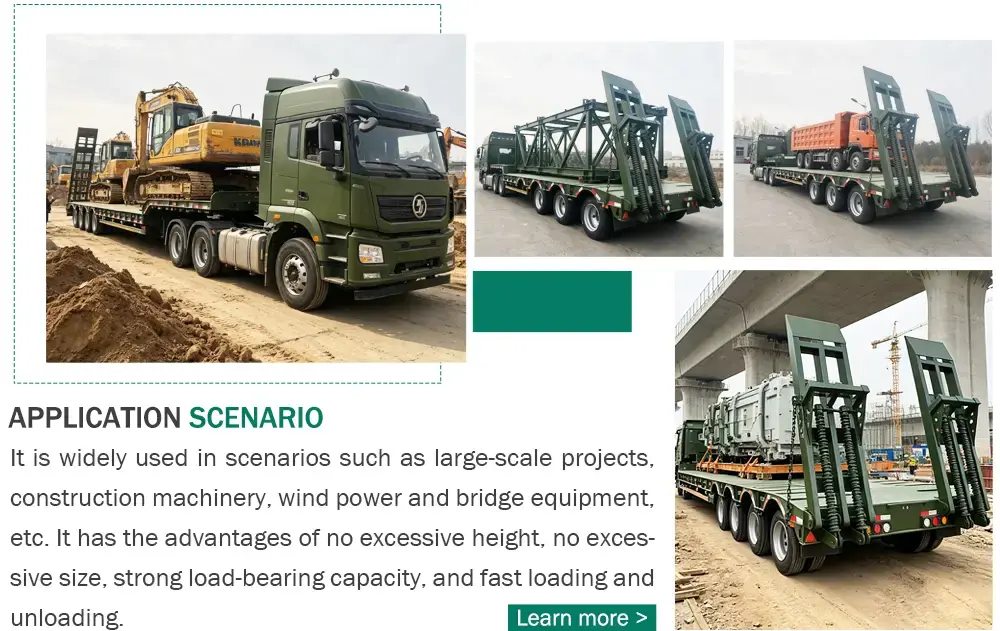

Application Scenarios
The 4 Axle 80-ton Low Flatbed Semi Trailer is the most reliable choice for construction, mining, and infrastructure industries. It is specifically designed to move oversized cargo such as large excavators, industrial boilers, and precast concrete structures. Whether navigating rugged mining roads or long-distance highways, its robust specifications make it the go-to solution for heavy-lift logistics providers globally.
