Premium High-Tensile Mainframe Structure : Formed with high-strength Q345B carbon steel and processed with advanced integrated submerged arc welding, guaranteeing ultimate structural durability against heavy freight twisting and impacts.
Optimized 2-Axle Weight Distribution : The engineered 2-axle design reduces vehicle tare weight and rolling resistance, helping container chassis operators dramatically lower fleet fuel consumption and tire replacement costs.

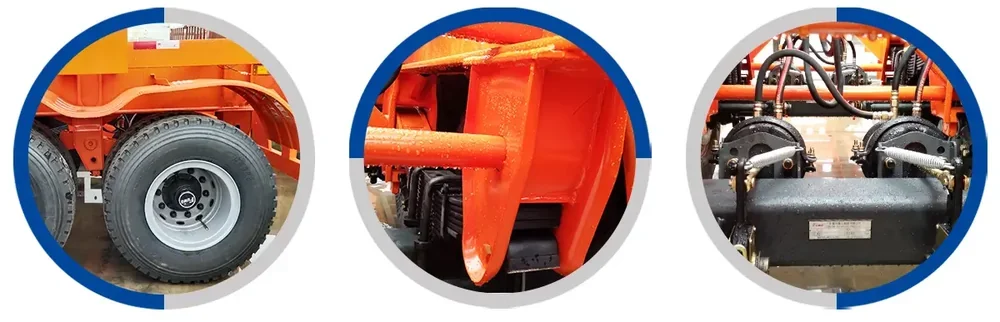

Heavy-Duty World-Class Components : Fitted with globally recognized 13-ton/16-ton FUWA or BPW axles and JOST landing gear, securing seamless tracking, stable braking, and a significantly extended commercial service life.
Versatile Flexible Container Security Locks : Configured with 4 to 12 heavy-duty ISO twist locks, allowing fleets to flexibly secure a single 40ft container, a 45ft container, or two 20ft containers simultaneously.
Advanced Corrosion Protection & High ROI : Treated with professional sand-blasting and premium polyurethane finishes, minimizing upkeep downtime and ensuring a high resale value for your fleet asset.
Send your demand, free design drawing & best quote for you!
Get a Free Quote Now
| Parameter | English Technical Specifications |
|---|

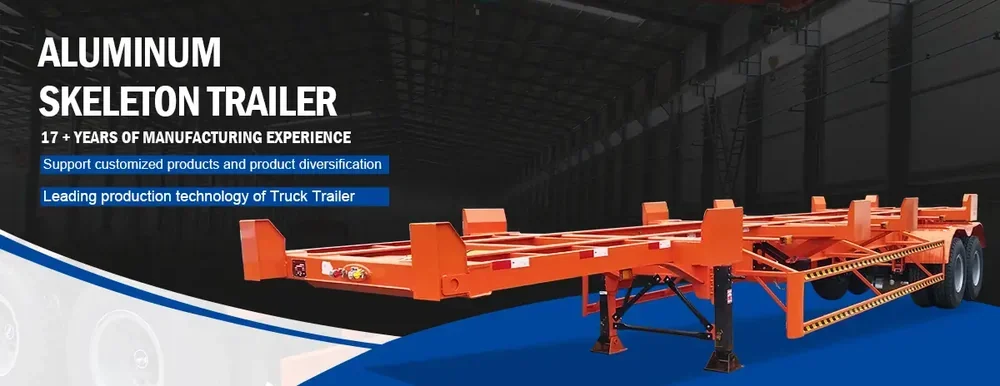

| Product Model | 2 Axle 40Ft Container Skeleton Semi Trailer |
| Main Function | Transport 40ft, 45ft, or 2*20ft ISO Containers |
| Main Beam | Height: 500mm, Top: 14mm, Middle: 8mm, Bottom: 16mm |
| Axle Setup | 2 Axles * 13T / 16T Capacity, FUWA / BPW Brand |
| Twist Locks | 4, 8, or 12 pcs ISO standard heavy-duty twist locks |

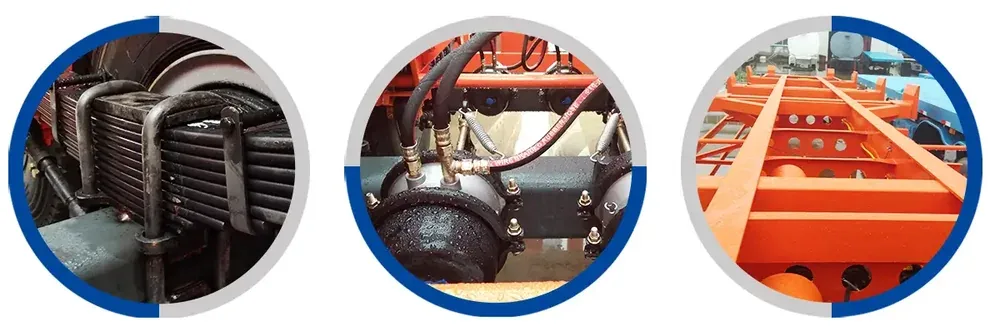

| Suspension | Heavy duty mechanical suspension with 10-layer leaf springs |
| Landing Gear | JOST D200T heavy duty two-speed linkage manual type |
| Braking Safety | Dual-line pneumatic braking system with WABCO ABS |
| Kingpin Specification | 2.0 inch (50#) or 3.5 inch (90#) bolted type JOST pin |
| Tire Setup | 12R22.5 Tubeless Tires, Triangular/Linglong (8+1 pcs) |

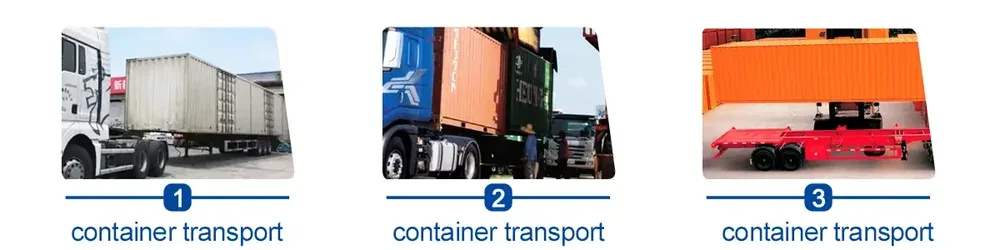

1. Ocean Port Container Terminals & Yards : The premier logistics solution for maritime transit operations, facilitating the rapid transfer of newly unloaded 40ft import/export containers to local customs clearance storage areas.
2. Long-Distance Highway Intermodal Logistics : Engineered to seamlessly transition cargo from railway freight depots or shipping ports onto interprovincial highway networks, navigating intermodal transport routes with absolute compliance.
3. Enterprise Factory & Cold-Chain Shipping Routes : Ideal for transporting 40ft reefer (refrigerated) containers or standard high-cube dry vans between primary agricultural hubs, manufacturing plants, and distribution networks.

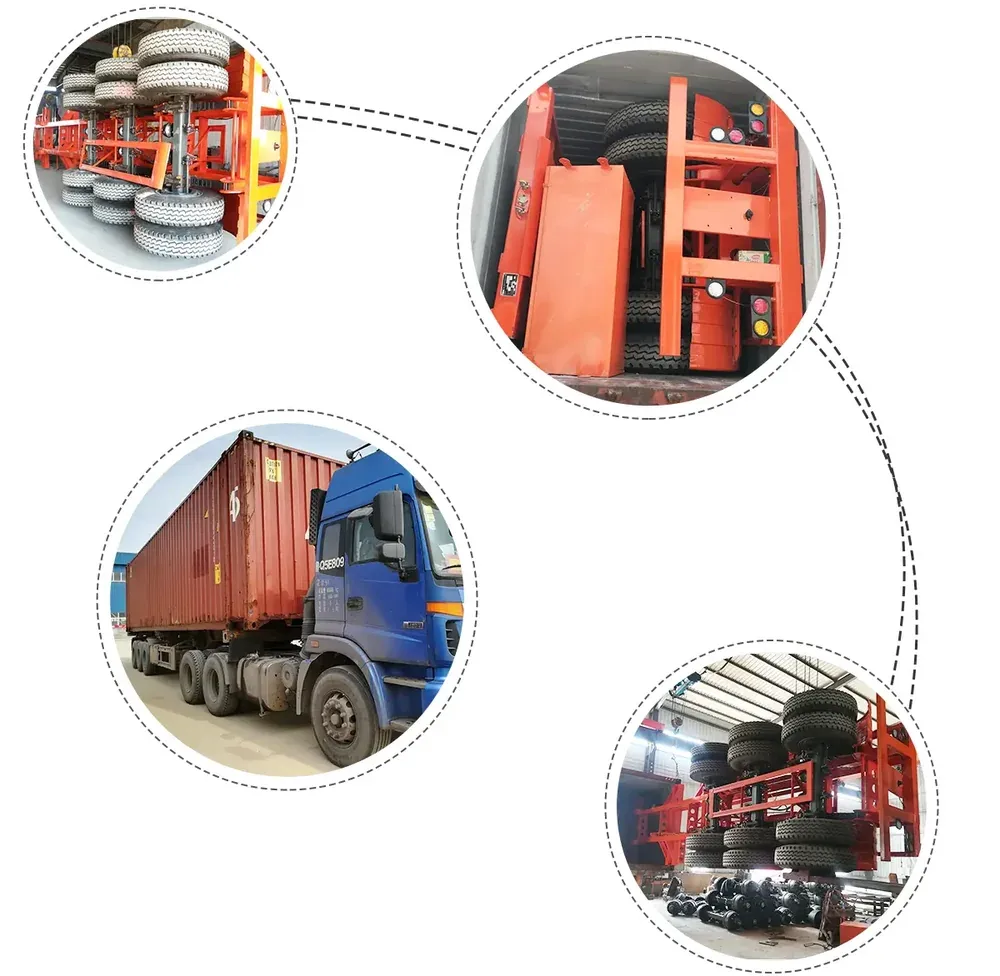

To protect the exterior paint and critical drivetrain electronic components of your skeleton semi-trailer, we offer professional packaging and shipping solutions. Each vehicle undergoes a comprehensive technical diagnostic inspection and multi-layer anti-corrosion wax polishing to protect the steel body from moisture during sea transport. We utilize reliable roll-on/roll-off (RORO) or specialized bulk carrier shipping methods to ensure the vehicles arrive at their international destinations intact.
Ready to enhance your transport efficiency?
Get a Free Quote Now

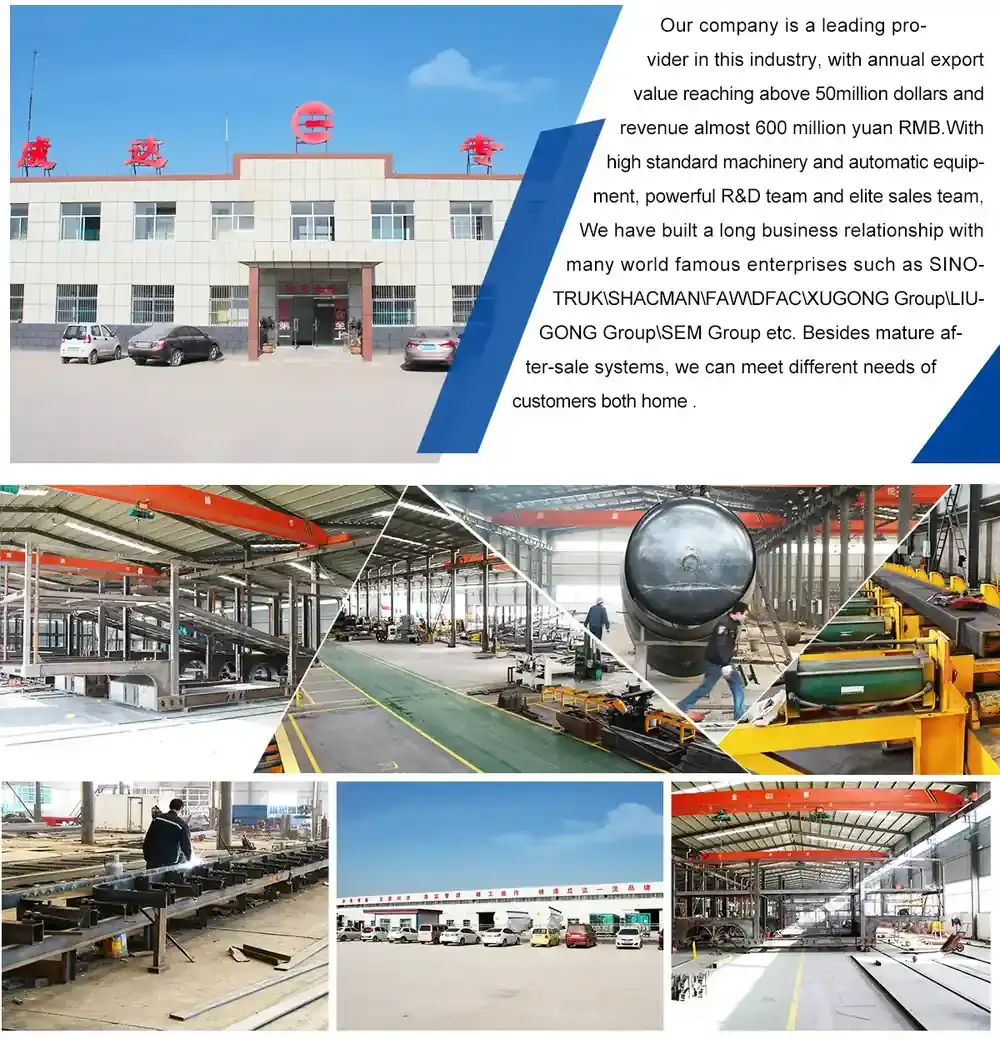

With proven quality and a strong brand image, we have obtained ISO9001, CCC, ECE, and BV certifications. As a manufacturer with its own factory and R&D capabilities, we currently have 200 employees, annual sales of 60 million, and our products are widely recognized in Southeast Asia, the Middle East, Africa, South America, and Central America.
