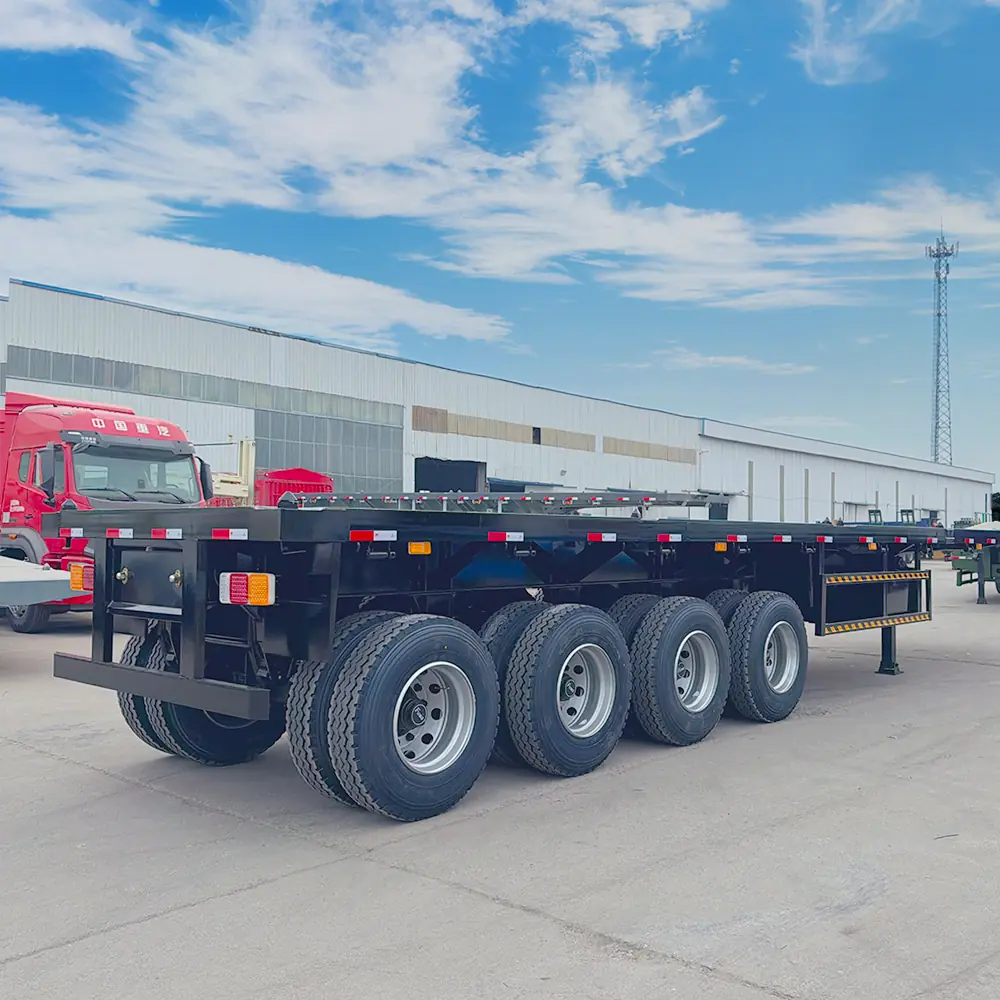

4 axle 45ft container semi trailer is an advanced heavy-duty logistics solution designed to provide superior stability and higher load capacity compared to standard three-axle models. This product is specifically designed for the safe long-haul transport of 45-foot high cube containers, maximizing your operational efficiency while ensuring compliance with stringent road regulations. Depending on length, we also offer 45-foot, 48-foot, 52-foot, 2-axle, 3-axle, and 4-axle versions, and colors can be customized.
Advantages of container semi-trailers:
1.It features a complete flat deck (composed of checkered steel or wood planks). It can transport not only standard 20ft/40ft/45ft containers via twistlocks, but also bulk cargo (such as bundles of steel bars, timber, bagged cement, and large precast components) when no container is available.
2.Compared to a dry van, a flatbed truck does not have side panels or a roof.
3.To accommodate both point loads (such as heavy equipment) and surface loads (such as containers), flatbed trailers typically use thickened, high-strength Q345B manganese steel for their main beams
Want to know which model is right for you?
Click here to inquire
We are a responsible trailer manufacturer and your best choice for trailers in China. We attach great importance not only to overall quality and performance, but also to the finest details, ensuring that each trailer is built to the highest quality standards and offers exceptional performance.
Specification of 4 axle heavy equipment flatbed trailer：
| Name | flatbed semi trailer |
|---|
| Loading capacity | 30-60T |
| Tare Weight | 6.5-10T |
| Axle | 2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua |
| Rim | 8.00-20/8.5-20/8.8-20 China Brand |
| Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
| Suspension | Mechanical suspension(German Type or America Type) or Air suspension |
| Spring leaf | 90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional) |
| Wheel base(mm) | 6880+1310+1310. |
| Kingpin | JOST brand 2.0 or 3.5 inch bolts type or Welding type |
| Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
| The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
| Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
| Brake chamber | 6 double brake chamber |
| Landing gear | JOST/FUWA/Yahua brand 28T(two speed or single speed) |
| Twist Locks | Four, Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
| Platform plate | 3mm Checkered steel plate |
| Brake system | Dual Line braking system |
| Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
| Valve | WABCO/KANGJIAN valve |
| Tool box | 1set standard tool box( waterproof type) |
| Spare tire carrier | 1 pieces( Patent type) |
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
| Painting | Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |

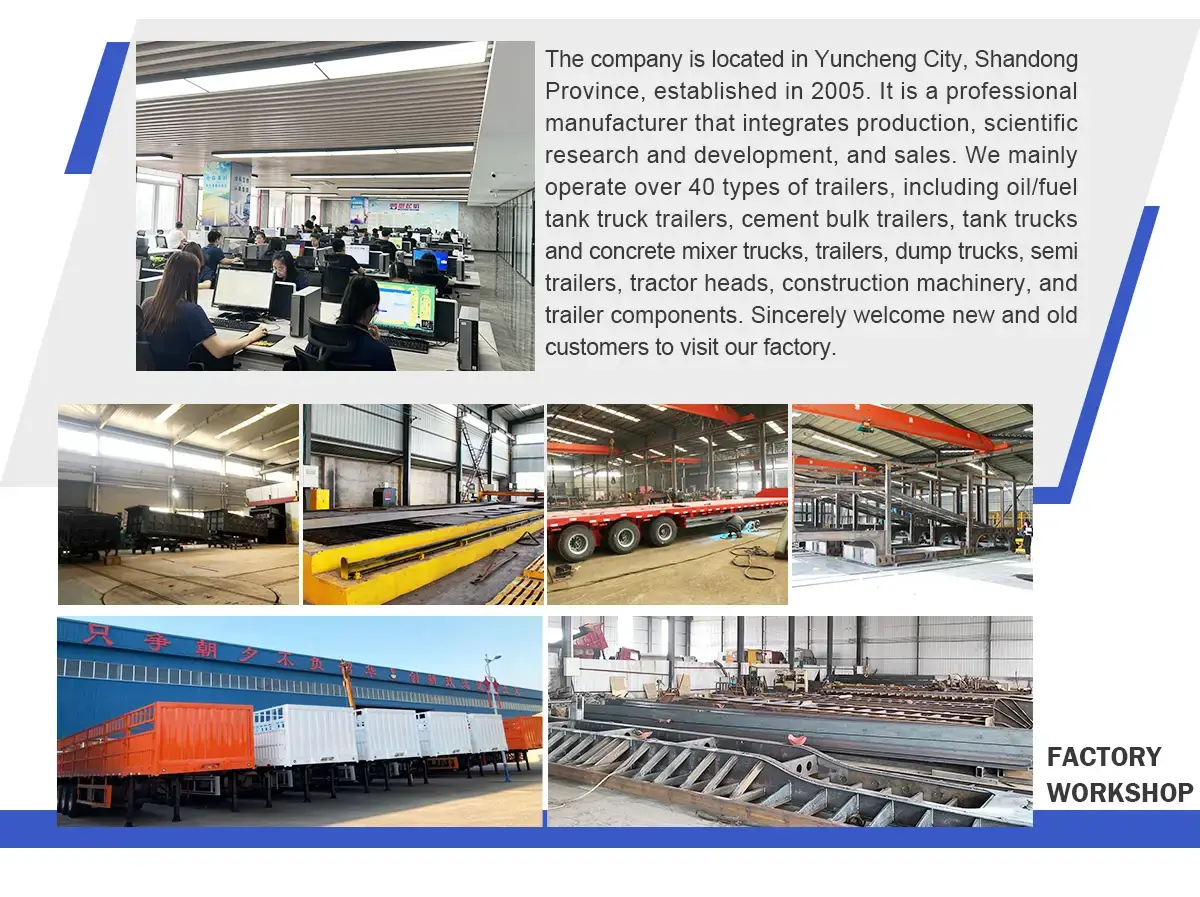

About US
Chengda Group, located in Jinan, Shandong, China, specializes in the production of a variety of semi-trailers, including 3 axle 20ft flatbed trailers, lowbed semi-trailers, oil tank semi-trailers, and powder tank semi-trailers. With an experienced and professional team, our products have been exported to many countries and regions around the world. Our products enjoy an excellent reputation among our customers. We welcome customers, business associations, and friends from all over the world to contact us for cooperation and mutual benefit.
