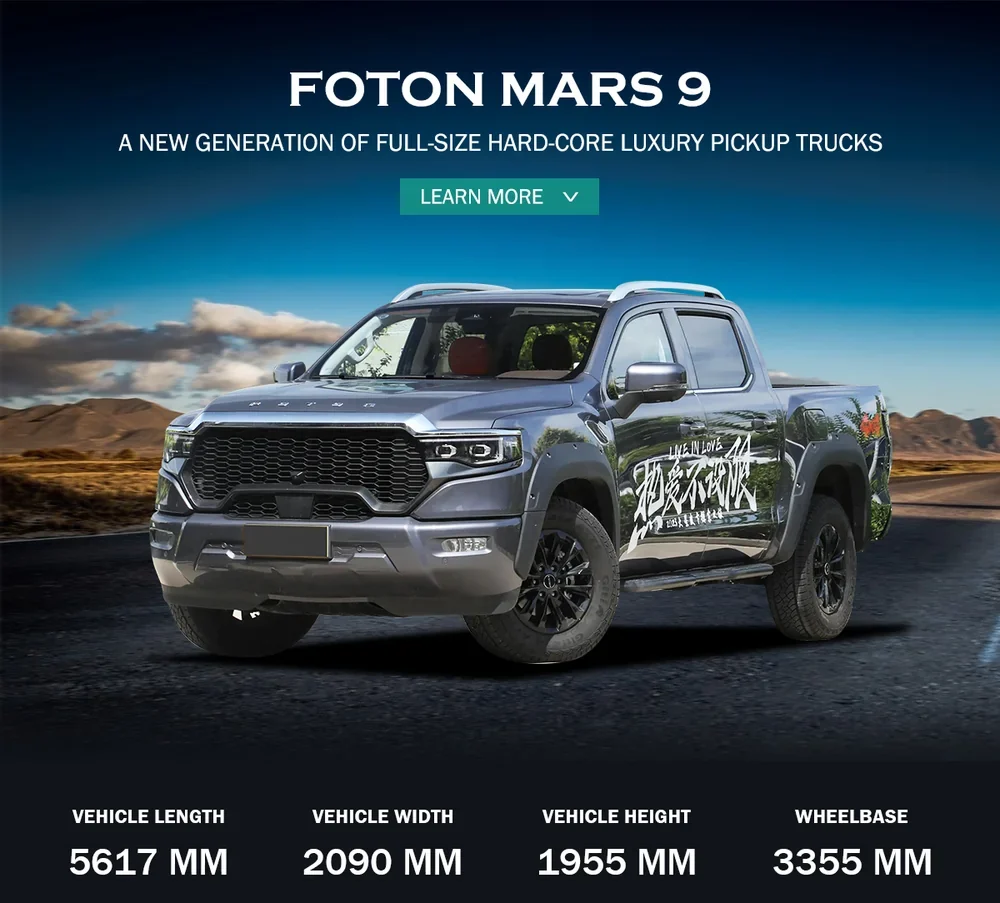

This Foton Mars 9 4x4 diesel pickup truck combines a 48V mild-hybrid engine and 4WD capability for demanding commercial operations.
Tell us your cargo and destination — we'll reply with a detailed quote.
Technical Specifications
| Specification Item | Technical Details |
|---|---|
| Model | Foton Mars 9 4x4 Diesel Pickup Truck |
| Powertrain | 2.0T Turbo Diesel + 48V Mild Hybrid System (MHEV) |
| Transmission | ZF 8-Speed Automatic Transmission (8AT) |
| Drive System | BorgWarner Intelligent Part-Time / Full-Time 4WD with Differential Lock |
| Max Power / Torque | Approx. 120 kW (163 HP) / 450 N·m |
| Overall Dimension | Approx. 5,617 x 2,000 x 1,910 mm (Wheelbase: 3,355 mm) |
| Cargo Bed Dimension | Approx. 1,577 x 1,650 x 530 mm |
| Suspension | Front: Double Wishbone Independent / Rear: Multi-Link Coil Spring |
| Tire & Wheel | 265/60R18 All-Terrain (AT) Tires with Aluminum Alloy Rims |
| Brake & Safety System | Front & Rear Vent Disc Brakes; ABS+EBD, ESP, L2 ADAS, 6 Airbags |
| Towing Capacity | Up to 3,000 kg – 3,500 kg (3.0–3.5 Tons) |
Want to know about other parameters?
Key Features & Product Highlights
High-Torque Diesel Engine with 48V Mild-Hybrid：Powered by an advanced AUCAN 2.0T turbo diesel engine paired with a 48V mild-hybrid system, delivering up to 450 N·m of low-end torque while significantly reducing fuel consumption.
ZF 8-Speed Automatic Transmission & Intelligent 4WD：Equipped with a smooth-shifting ZF 8AT gearbox and BorgWarner electronic 4WD system with differential locks to handle extreme mud, snow, and off-road conditions.

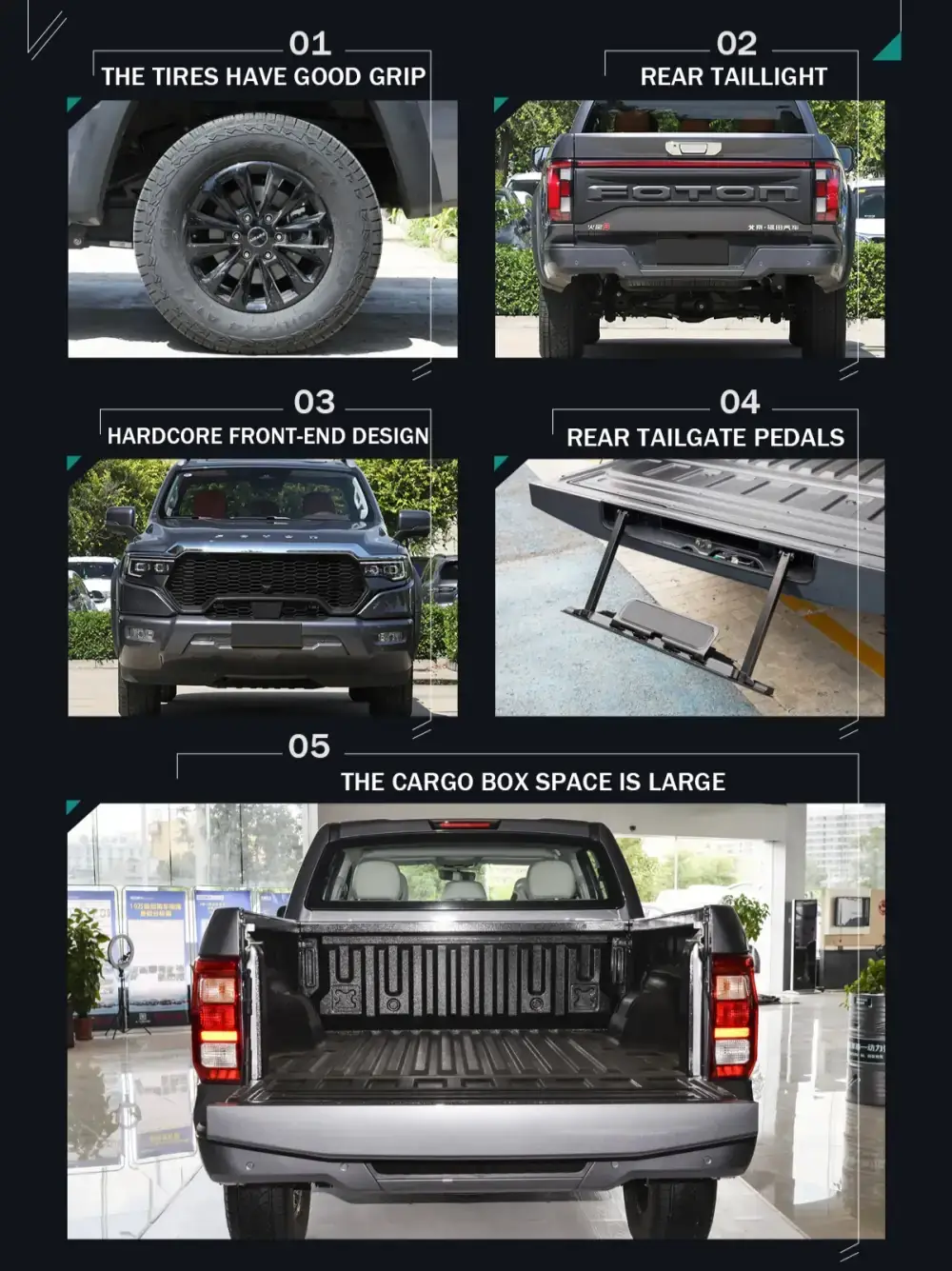

Full-Size Wide-Body Design & High Payload Cargo Bed：Features a massive 2-meter wide-body chassis and a heavy-duty reinforced steel cargo bed, offering superior stability, high towing capacity, and spacious cargo volume.
Multi-Link Rear Suspension for Premium Comfort：Combines commercial toughness with rear multi-link coil spring suspension, effectively absorbing road vibration and ensuring a smooth, luxurious cabin ride.

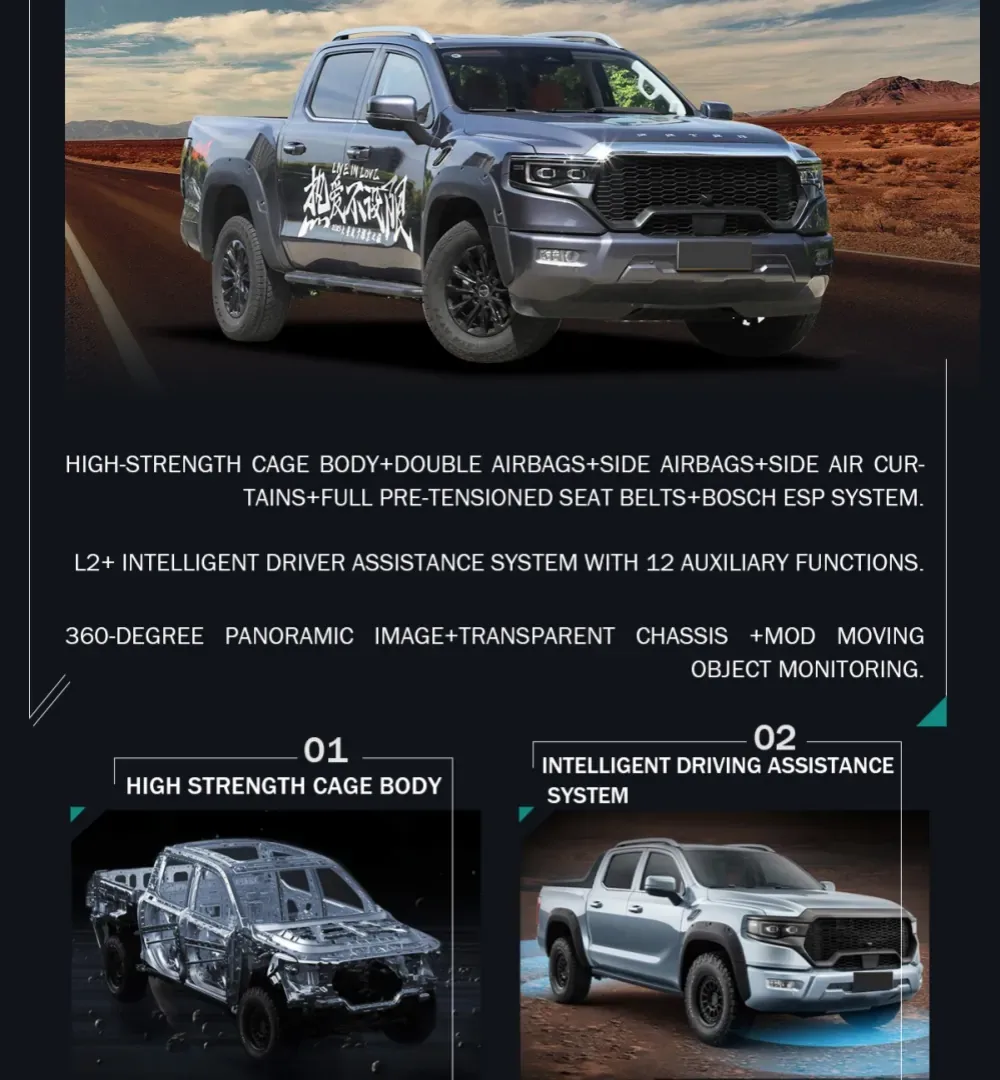

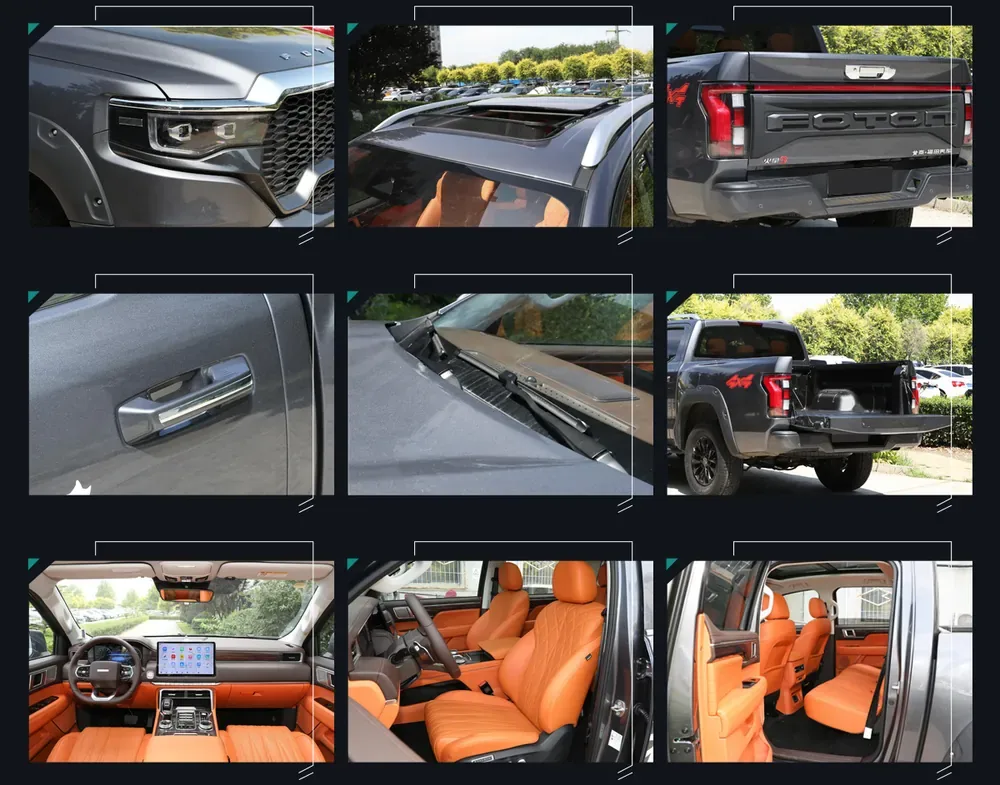

Advanced Smart Cockpit & Level 2 ADAS Safety：Fitted with a 14.6-inch HD touchscreen, panoramic sunroof, 360-degree camera, and Level 2 ADAS driver assistance systems to secure every driver’s safety on long journeys.
