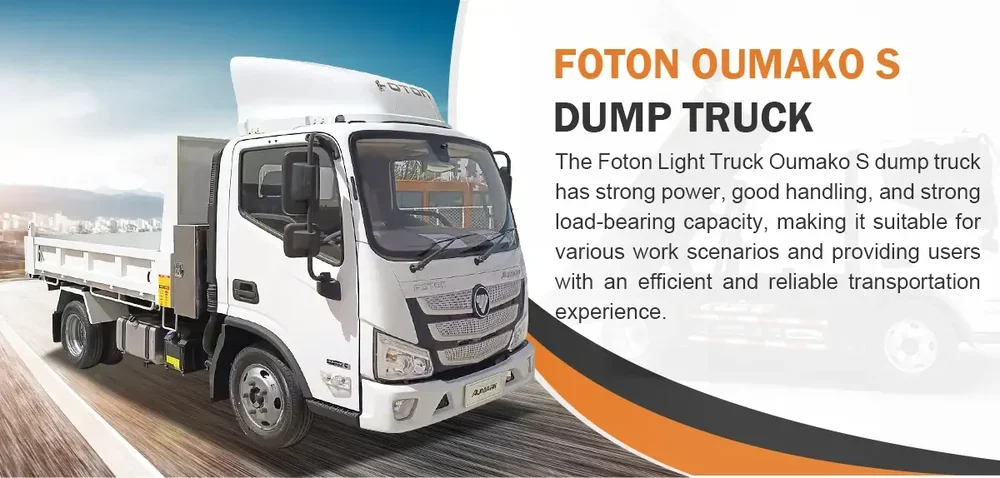

Foton Aumark S Series Light Dump Truck adopts solid Weichai power, featuring compact body, flexible driving and strong load-bearing capacity. It is durable and fuel-saving, widely applied in construction waste transportation, sand and gravel delivery and municipal engineering, a cost-effective light-duty hauling vehicle.
Technical Specifications Reference
| Parameter | Specification |
|---|
| Overall Dimension | 5995×2100×2600mm |
| Wheelbase | 3360mm |
| Curb Weight | 2850kg |
| Gross Vehicle Weight | 4495kg |
| Rated Load Capacity | 1645kg |
| Cargo Box Size | 3200×1900×600mm |
| Cargo Volume | 3.6m³ |
| Engine Brand & Model | Weichai WP2.3NQ130E61 |
| Displacement | 2.3L |
| Rated Power | 96kW(130HP) |
| Peak Torque | 380N·m |
| Emission Standard | China 6 / Euro 5 |
| Transmission Type | 5-speed manual gearbox |
| Drive Mode | 4×2 rear wheel drive |
| Max Speed | 95km/h |
| Tire Specification | 7.00R16 steel radial tire |
| Braking System | Hydraulic brake with ABS |
| Cab Type | Single row sealed cab |
| Lifting Mode | Hydraulic automatic dumping |
| Fuel Tank Capacity | 80L |
Want to know about other parameters?
Click here to inquire

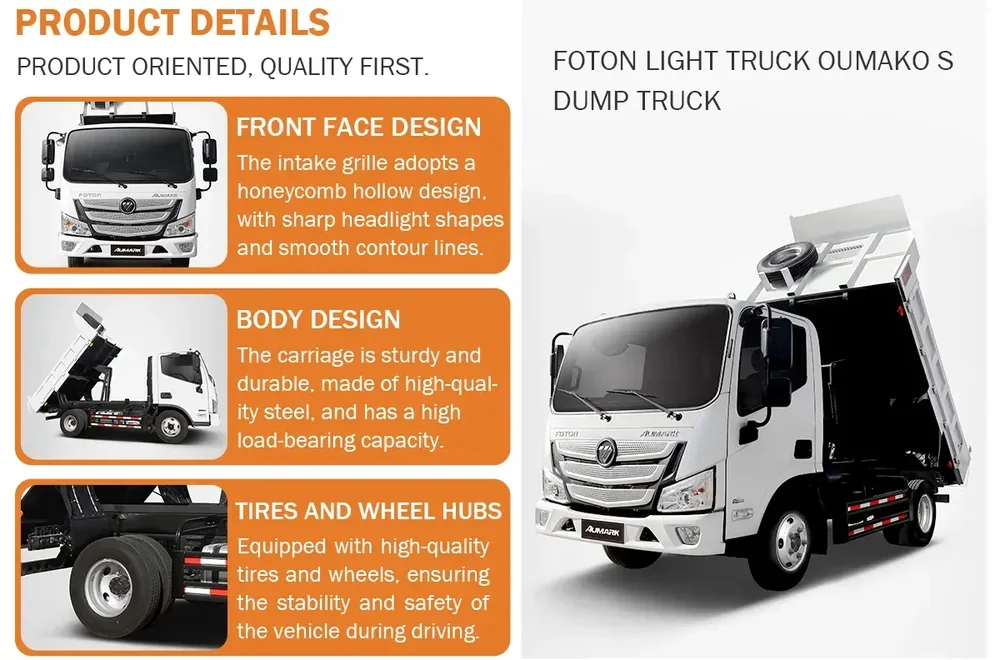

Core strengths / features
1. Reliable Powertrain: Powered by the proven Weichai diesel engine, delivering stable power output and low fuel consumption.
2. High Maneuverability: Compact chassis design enables easy navigation through narrow city streets and construction zones.
3. Heavy-Duty Cargo Bed: Reinforced steel dump bed resists wear and tear, suitable for frequent loading/unloading operations.
4. Low Maintenance Cost: Standardized parts and easy access to after-sales support reduce long-term operational expenses.
5. Safe & Comfortable Cab: Ergonomic driver cabin with enhanced visibility and safety features for long work shifts.
Application scenarios
The Foton Aumark S Series Light Dump Truck excels in urban construction projects, municipal waste transport, small-scale mining operations, and agricultural material hauling. Its compact size makes it ideal for congested city sites and narrow rural roads, while the robust tipper mechanism handles sand, gravel, construction debris, and other bulk materials with ease.
Transportation methods
To ensure your products arrive perfectly and minimize shipping costs, we offer three professional international logistics solutions: roll-on/roll-off (Ro-Ro) shipping, bulk cargo shipping, and flat rack containers. We also provide professional waxing and painting before shipment to prevent seawater corrosion.
Leave your contact, get exclusive wholesale price now!
Get a Free Quote Now
Our Advantages

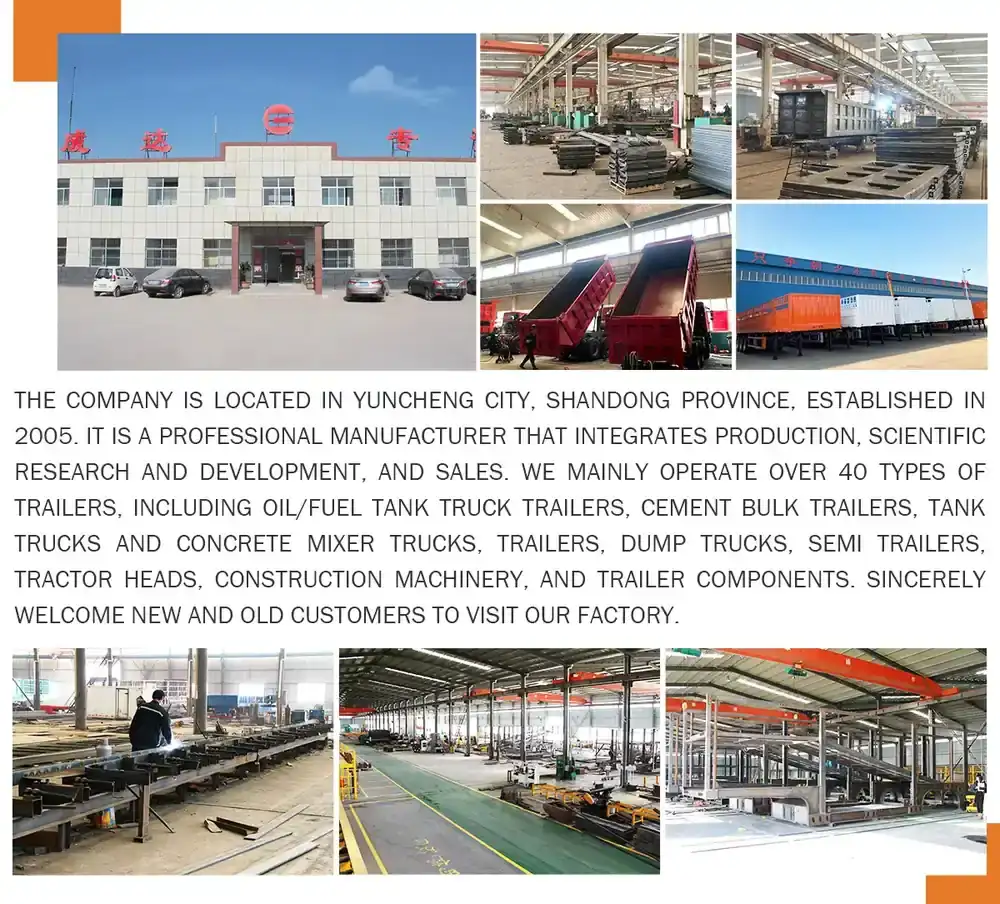

Shandong Chengda Co., Ltd., established in 2005, specializes in manufacturing various types of trailers, such as container trailers, transport trailers, construction equipment, tractors, and trailer spare parts.
Equipped with advanced automated equipment and excellent quality control, the company has obtained ISO9001, CCC, ECE, and BV certifications based on its market-proven quality and strong brand image. As a manufacturer with its own factory and R&D capabilities, the company currently employs 200 people, achieves annual sales of 60 million RMB, and its products are widely recognized in Southeast Asia, the Middle East, Africa, South America, and Central America.
